Pavilions

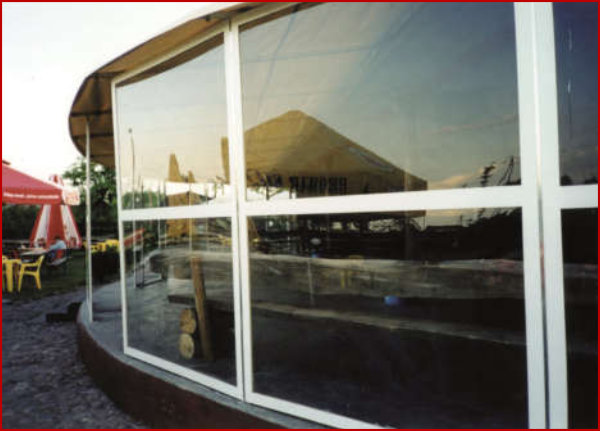

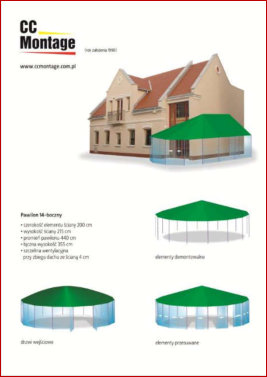

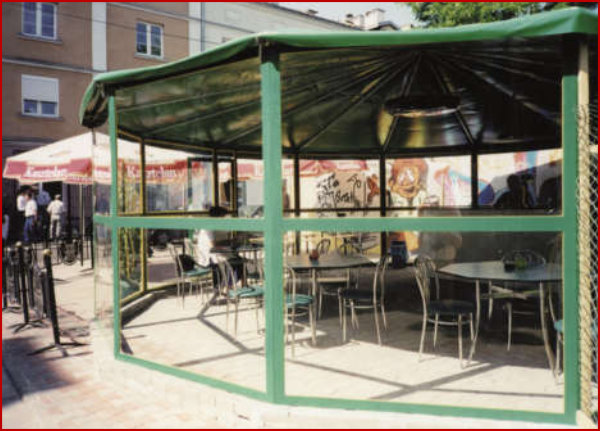

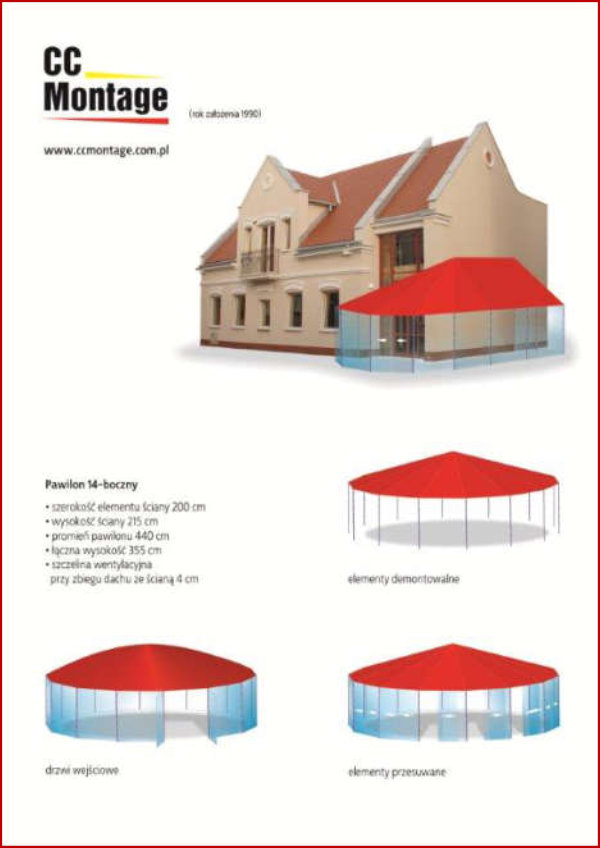

1 . The   pavilion   is   inscribed   in   a   circle   with   14   angles.   Dimensions   of   each   element   (width.   x height.)   is   2000   x   2100   mm,   with   an   area.   ca   62   m²,   with   no   structural   supports   inside   and outside. 2 . Frame   construction   is   steel,   zinc,   built   on   aluminum   construction   by   systems   Aluprof   SA, powder coated to any RAL color or anodized silver color - gray. 3 . Each   element   has   2   pcs.   of   sliding   door   width.   min.   900   mm   in   the   light.   The   door   can   be                 operated   (opened   and   closed)   only   from   the   inside.   Each   wing   is   equipped   with   a   snap lock.   Each   wing   can   also   be   removed,   but   only   from   the   inside.   Total   sliding   wings   in   this case is 26. 4 . One   pavilion’s   element   is   aluminum   doors,   double-wing   and   one   passive   wing.   The   doors are equipped with self-closing and locking cylinder 5 . Location of described pavilion’s parts on the perimeter of the pavilion is unrestricted. 6 . Filling:   Tempered   safety   glass   thickness.   6   mm,   colorless   or   colored   type   antisol   in   the colors brown, green or graphite. 7 . Roof: PVC fabric. Additional roof insulation is possible. 8 . Floors: wood, on the joists, impregnated 3 times. 9 . The bar segment, as described in the individual specification. 1 0 . Graphics - unrestricted. 1 1 . Electrical Installation includes: o Switchgear, o 12 lamps o 8 halogen lamps over the bar. o Installation accessories: connectors, sockets, cables, o 2 air conditioners 2 x 3.5 KW 1 2 . Substrate:   The   pavilion   can   be   installed   on   any   leveled   surface   (eg.   polbruk).   Also   without floor.   It   is   preferred   if   the   pavilion   stands   on   the   floor   with   an   area   of   ​​more   than   pavilion. Outdoor flooring can be used to bring tables with umbrellas. 1 3 . The   pavilion   does   not   have   a   permanent   connection   to   the   land   and   in   order   to   that   fact no requirements for building are needed. 1 4 . Assembly / disassembly - 1 day. 1 5 . The pavilion does not include facilities. 1 6 . The pavilion does not include sanitary facilities.
